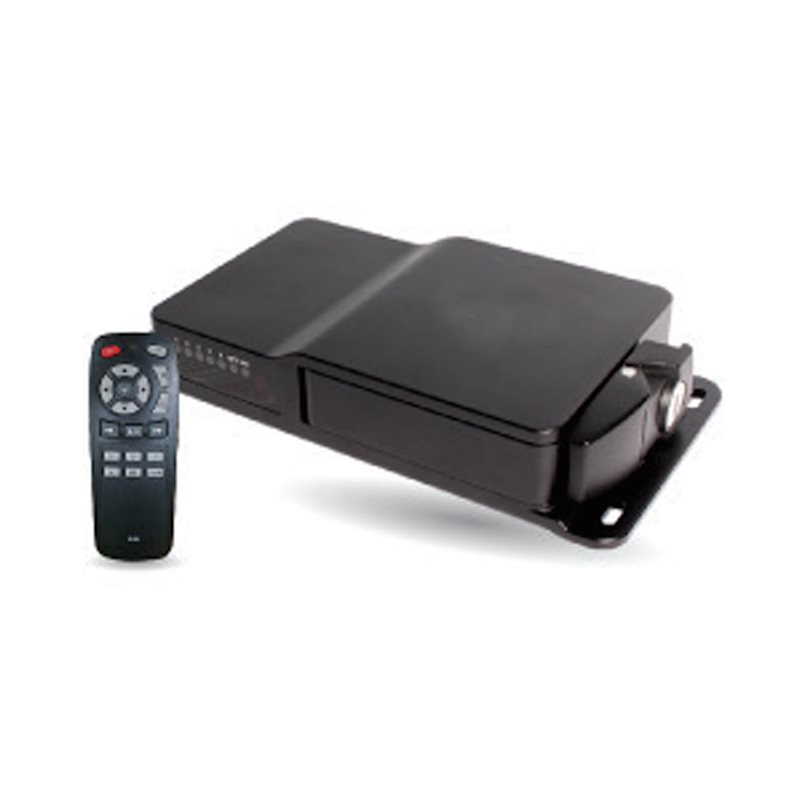

Q2 4-Channel DVR Stand-Alone Type

Product Summary

  • TVI/AHD/CVBS
  • Waterproof DVR (IP69K)
  • SD Card Cover Lock System
  • All Die-cast Case
  • WiFi (Option)
  • Front Window/ LED Light
  • Cover Lock System


PRODUCT SPECIFICATIONS

 Specifications
 Video Signal - Input 4-Channel Input (TVI or AHD or CVBS)
  Video Signal - Output  HD 1 Output/CVBS 1 Output
 Audio Signal 1 Input
  Recording - Resolution  FHD (1920 x 1080), 960 HD (960 x 480)
 Recording - Frames 30 fps
  Recording - Mode  Normal/Event (G-sensor)/Manual
 Compression H.264
  Memory  SD Card (min. 1.6 GB - max. 5.12 GB)
 Power Supply 12 - 24 Vdc (with super cap) max. 32 V
  Operating Temperature  -10° C ~ 60° C
 Storage Temperature -20° C ~ 70° C
  Dimensions (W/D/H)  198 x 34.5 x 100 mm
 Weight 822 g (DVR only)


Part No.: T177814803
