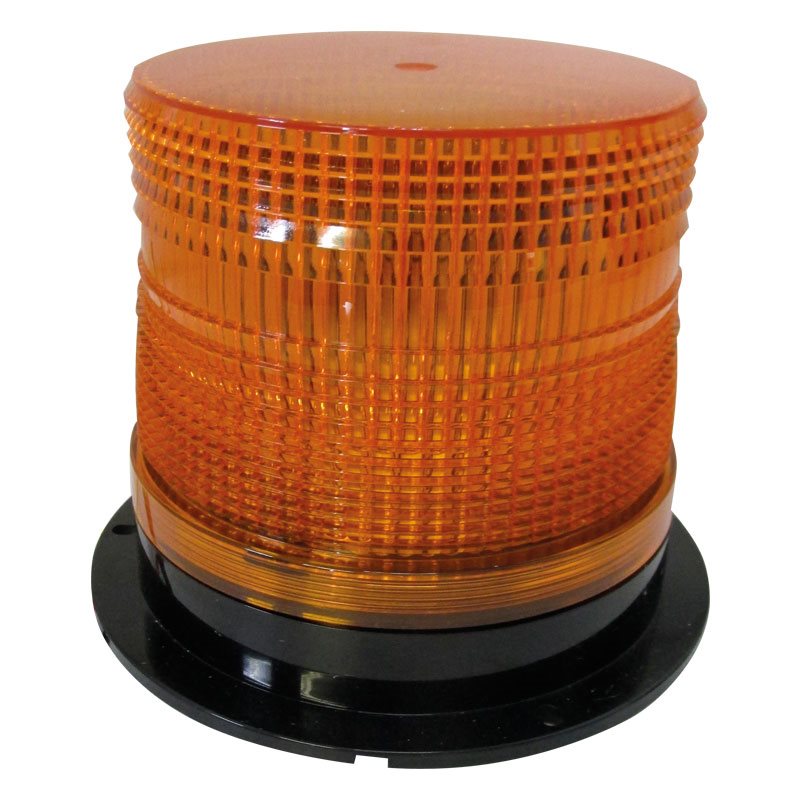

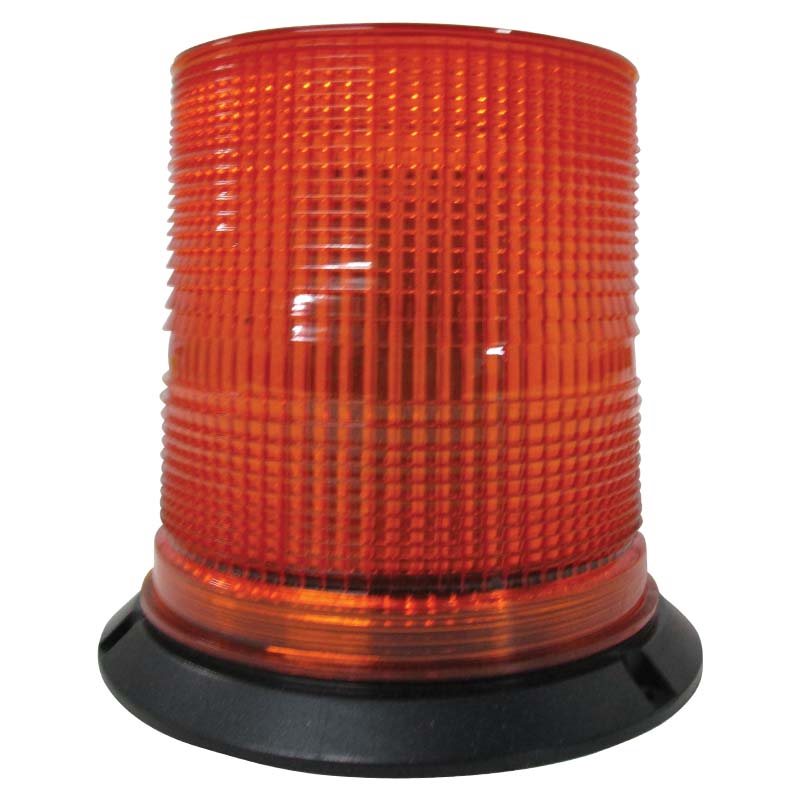

Iconiq LED Rechargeable Beacon

Product Summary

This LED beacon has unique LED reflectors which provide a focused signal for superior brightness. The lens construction provides an excellent horizontal spread for easy identification of optical signal. The light has 3 flash patterns plus 4 simulated rotating patterns which provide plenty of lighting options. Low amp draw and bright output make it the ideal beacon for everyday use.



PRODUCT SPECIFICATIONS

Features:

  • 12 - 24 V

  • Magnetic base

  • 4 Hour Charge pendant

  • 6 Hour Discharging time
  • Shock Resistant

  • ECE R65 Approved

  • EMC R10 Approved

  • IP67 Rating

  • -40°C to +65°C Operating temperature



























































  Technical Data
  Power Consumption   18 w
  Current/Voltage   0.75 A @ 24 V
  SMD   3 535
  LED Qty   10
  Colour Temperature   590-595 K
  Compliance   R65

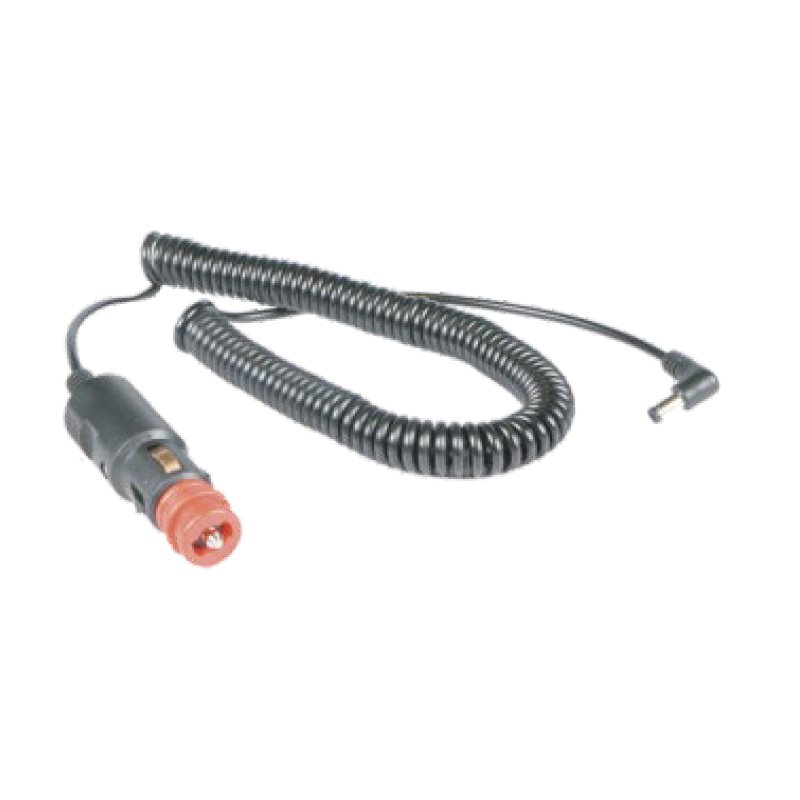

  Charging Interface   DC5.5/2.1
  Electric Core   Double Section 18 650 Lithium Ion
  Capacity   7.4 V 2 600 mAh
  Charging Voltage   12 V
  Charging Current   700 mA
  Charge Pendant   4 H
  Discharging Time   6 H



Amber
Part No.: T330012406
White
Part No.: T330012407
